Resultados: 168 unas parejas encontradas
| Image |  |
Part Number |
DC Breakdown Voltage |
Tolerance |
Impulse Breakdown Voltage |
Capacitance |
Insulation Resistance |
CAD |
Electrodes |
Mounting |
Dimensions |
Lead Spacing |
UL |
RoHS |
Failsafe |
Series |
Packaging |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
|
3H-150J1 | 150V | ±20% (120V - 180V) | ≤ 600V | ≤ 3.0pF | ≥ 10000MΩ |  |
3 | Through Hole | 8.0mm x 10.0mm x 15.0mm | 4.4mm | Yes | Yes | No | 3H Series | Tray (100pcs) |
 |
|
3H-150J1F5 | 150V | ±20% (120V - 180V) | ≤ 600V | ≤ 3.0pF | ≥ 10000MΩ |  |
3 | Through Hole | 9.0mm x 10.5mm x 16.0mm | 4.4mm | Yes | Yes | Yes | 3H Series | Tray (100pcs) |
|
|
3H-230J1 | 230V | ±20% (184V - 276V) | ≤ 700V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 8.0mm x 10.0mm x 15.0mm | 4.4mm | Yes | Yes | No | 3H Series | Tray (100pcs) |
|
|
3H-230J1F5 | 230V | ±20% (184V - 276V) | ≤ 700V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 9.0mm x 10.5mm x 16.0mm | 4.4mm | Yes | Yes | Yes | 3H Series | Tray (100pcs) |
|
|
3H-250J1 | 250V | ±20% (200V - 300V) | ≤ 700V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 8.0mm x 10.0mm x 15.0mm | 4.4mm | Yes | Yes | No | 3H Series | Tray (100pcs) |
|
|
3H-250J1F5 | 250V | ±20% (200V - 300V) | ≤ 700V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 9.0mm x 10.5mm x 16.0mm | 4.4mm | Yes | Yes | Yes | 3H Series | Tray (100pcs) |
|
|
3H-350J1 | 350V | ±20% (280V - 420V) | ≤ 900V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 8.0mm x 10.0mm x 15.0mm | 4.4mm | Yes | Yes | No | 3H Series | Tray (100pcs) |
|
|
3H-350J1F5 | 350V | ±20% (280V - 420V) | ≤ 900V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 9.0mm x 10.5mm x 16.0mm | 4.4mm | Yes | Yes | Yes | 3H Series | Tray (100pcs) |
|
|
3H-420J1 | 420V | ±20% (336V - 504V) | ≤ 1000V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 8.0mm x 10.0mm x 15.0mm | 4.4mm | Yes | Yes | No | 3H Series | Tray (100pcs) |
|
|
3H-420J1F5 | 420V | ±20% (336V - 504V) | ≤ 1000V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 9.0mm x 10.5mm x 16.0mm | 4.4mm | Yes | Yes | Yes | 3H Series | Tray (100pcs) |
|
|
3H-500J1 | 500V | ±20% (400V - 600V) | ≤ 1200V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 8.0mm x 10.0mm x 15.0mm | 4.4mm | Yes | Yes | No | 3H Series | Tray (100pcs) |
|
|
3H-500J1F5 | 500V | ±20% (400V - 600V) | ≤ 1200V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 9.0mm x 10.5mm x 16.0mm | 4.4mm | Yes | Yes | Yes | 3H Series | Tray (100pcs) |
|
|
3H-90J1 | 90V | ±20% (72V - 108V) | ≤ 500V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 8.0mm x 10.0mm x 15.0mm | 4.4mm | Yes | Yes | No | 3H Series | Tray (100pcs) |
|
|
3H-90J1F5 | 90V | ±20% (72V - 108V) | ≤ 500V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 9.0mm x 10.5mm x 16.0mm | 4.4mm | Yes | Yes | Yes | 3H Series | Tray (100pcs) |
 |
|
3J-1B | 90V | ±20% (72V - 108V) | ≤ 850V | ≤ 3.0pF | ≥ 10000MΩ |  |
3 | Through Hole | 7.5mm x 12.0mm | 0.0mm | Yes | Yes | No | 3J Series | Tray (100pcs) |
 |
|
3J-1J1 | 90V | ±20% (72V - 108V) | ≤ 850V | ≤ 3.0pF | ≥ 10000MΩ |  |
3 | Through Hole | 7.5mm x 12.0mm x 14.5mm | 4.4mm | Yes | Yes | No | 3J Series | Tray (100pcs) |
 |
|
3J-1J1F2 | 90V | ±20% (72V - 108V) | ≤ 850V | ≤ 3.0pF | ≥ 10000MΩ |  |
3 | Through Hole | 8.0mm x 12.0mm x 16.3mm | 4.4mm | Yes | Yes | Yes | 3J Series | Tray (100pcs) |
|
|
3J-2B | 145V | ±20% (116V - 174V) | ≤ 850V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 7.5mm x 12.0mm | 0.0mm | Yes | Yes | No | 3J Series | Tray (100pcs) |
|
|
3J-2J1 | 145V | ±20% (116V - 174V) | ≤ 850V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 7.5mm x 12.0mm x 14.5mm | 4.4mm | Yes | Yes | No | 3J Series | Tray (100pcs) |
|
|
3J-2J1F2 | 145V | ±20% (116V - 174V) | ≤ 850V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 8.0mm x 12.0mm x 16.3mm | 4.4mm | Yes | Yes | Yes | 3J Series | Tray (100pcs) |
|
|
3J-3B | 230V | ±20% (184V - 276V) | ≤ 650V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 7.5mm x 12.0mm | 0.0mm | Yes | Yes | No | 3J Series | Tray (100pcs) |
|
|
3J-3J1 | 230V | ±20% (184V - 276V) | ≤ 650V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 7.5mm x 12.0mm x 14.5mm | 4.4mm | Yes | Yes | No | 3J Series | Tray (100pcs) |
|
|
3J-3J1F2 | 230V | ±20% (184V - 276V) | ≤ 650V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 8.0mm x 12.0mm x 16.3mm | 4.4mm | Yes | Yes | Yes | 3J Series | Tray (100pcs) |
|
|
3J-4B | 250V | ±20% (200V - 300V) | ≤ 650V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 7.5mm x 12.0mm | 0.0mm | Yes | Yes | No | 3J Series | Tray (100pcs) |
|
|
3J-4J1 | 250V | ±20% (200V - 300V) | ≤ 650V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 7.5mm x 12.0mm x 14.5mm | 4.4mm | Yes | Yes | No | 3J Series | Tray (100pcs) |
|
|
3J-4J1F2 | 250V | ±20% (200V - 300V) | ≤ 650V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 8.0mm x 12.0mm x 16.3mm | 4.4mm | Yes | Yes | Yes | 3J Series | Tray (100pcs) |
|
|
3J-5B | 300V | ±20% (240V - 360V) | ≤ 750V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 7.5mm x 12.0mm | 0.0mm | Yes | Yes | No | 3J Series | Tray (100pcs) |
|
|
3J-5J1 | 300V | ±20% (240V - 360V) | ≤ 750V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 7.5mm x 12.0mm x 14.5mm | 4.4mm | Yes | Yes | No | 3J Series | Tray (100pcs) |
|
|
3J-5J1F2 | 300V | ±20% (240V - 360V) | ≤ 750V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 8.0mm x 12.0mm x 16.3mm | 4.4mm | Yes | Yes | Yes | 3J Series | Tray (100pcs) |
|
|
3J-6B | 350V | ±20% (280V - 420V) | ≤ 750V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 7.5mm x 12.0mm | 0.0mm | Yes | Yes | No | 3J Series | Tray (100pcs) |
|
|
3J-6J1 | 350V | ±20% (280V - 420V) | ≤ 750V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 7.5mm x 12.0mm x 14.5mm | 4.4mm | Yes | Yes | No | 3J Series | Tray (100pcs) |
|
|
3J-6J1F2 | 350V | ±20% (280V - 420V) | ≤ 750V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 8.0mm x 12.0mm x 16.3mm | 4.4mm | Yes | Yes | Yes | 3J Series | Tray (100pcs) |
|
|
3J-7B | 400V | ±20% (320V - 480V) | ≤ 850V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 7.5mm x 12.0mm | 0.0mm | Yes | Yes | No | 3J Series | Tray (100pcs) |
|
|
3J-7J1 | 400V | ±20% (320V - 480V) | ≤ 850V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 7.5mm x 12.0mm x 14.5mm | 4.4mm | Yes | Yes | No | 3J Series | Tray (100pcs) |
|
|
3J-7J1F2 | 400V | ±20% (320V - 480V) | ≤ 850V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 8.0mm x 12.0mm x 16.3mm | 4.4mm | Yes | Yes | Yes | 3J Series | Tray (100pcs) |
 |
|
3P-1L1 | 90V | ±20% (72V - 108V) | ≤ 1050V | ≤ 2.0pF | ≥ 10000MΩ |  |
3 | Through Hole | 8.2mm x 15.0mm x 20.0mm | 4.4mm | Yes | Yes | No | 3P Series | Tray (100pcs) |
|
|
3P-4L1 | 250V | ±20% (200V - 300V) | ≤ 1100V | ≤ 2.0pF | ≥ 10000MΩ | |
3 | Through Hole | 8.2mm x 15.0mm x 20.0mm | 4.4mm | Yes | Yes | No | 3P Series | Tray (100pcs) |
 |
|
3SD4-145 | 145V | ±20% (116V - 174V) | ≤ 600V | ≤ 1.0pF | ≥ 10000MΩ |  |
3 | Surface | 4.4mm x 4.4mm x 7.2mm | 0.0mm | Yes | Yes | No | 3SD4 Series | Tape & Reel (1800pcs) |
|
|
3SD4-200 | 200V | ±20% (160V - 240V) | ≤ 600V | ≤ 1.0pF | ≥ 10000MΩ | |
3 | Surface | 4.4mm x 4.4mm x 7.2mm | 0.0mm | Yes | Yes | No | 3SD4 Series | Tape & Reel (1800pcs) |
|
|
3SD4-230 | 230V | ±20% (184V - 276V) | ≤ 650V | ≤ 1.0pF | ≥ 10000MΩ | |
3 | Surface | 4.4mm x 4.4mm x 7.2mm | 0.0mm | Yes | Yes | No | 3SD4 Series | Tape & Reel (1800pcs) |
|
|
3SD4-75 | 75V | ±20% (60V - 90V) | ≤ 600V | ≤ 1.0pF | ≥ 10000MΩ | |
3 | Surface | 4.4mm x 4.4mm x 7.2mm | 0.0mm | Yes | Yes | No | 3SD4 Series | Tape & Reel (1800pcs) |
|
|
3SD4-90 | 90V | ±20% (72V - 108V) | ≤ 600V | ≤ 1.0pF | ≥ 10000MΩ | |
3 | Surface | 4.4mm x 4.4mm x 7.2mm | 0.0mm | Yes | Yes | No | 3SD4 Series | Tape & Reel (1800pcs) |
 |
|
3SDH4-145 | 145V | ±20% (116V - 174V) | ≤ 600V | ≤ 0.5pF | ≥ 10000MΩ |  |
3 | Surface | 4.4mm x 4.4mm x 7.2mm | 0.0mm | Yes | Yes | No | 3SDH4 Series | Tape & Reel (1800pcs) |
|
|
3SDH4-200 | 200V | ±20% (160V - 240V) | ≤ 600V | ≤ 0.5pF | ≥ 10000MΩ | |
3 | Surface | 4.4mm x 4.4mm x 7.2mm | 0.0mm | Yes | Yes | No | 3SDH4 Series | Tape & Reel (1800pcs) |
|
|
3SDH4-230 | 230V | ±20% (184V - 276V) | ≤ 650V | ≤ 0.5pF | ≥ 10000MΩ | |
3 | Surface | 4.4mm x 4.4mm x 7.2mm | 0.0mm | Yes | Yes | No | 3SDH4 Series | Tape & Reel (1800pcs) |
|
|
3SDH4-350 | 350V | ±20% (280V - 420V) | ≤ 750V | ≤ 0.5pF | ≥ 10000MΩ | |
3 | Surface | 4.4mm x 4.4mm x 7.2mm | 0.0mm | Yes | Yes | No | 3SDH4 Series | Tape & Reel (1800pcs) |
|
|
3SDH4-75 | 75V | ±20% (60V - 90V) | ≤ 600V | ≤ 0.5pF | ≥ 10000MΩ | |
3 | Surface | 4.4mm x 4.4mm x 7.2mm | 0.0mm | Yes | Yes | No | 3SDH4 Series | Tape & Reel (1800pcs) |
|
|
3SDH4-90 | 90V | ±20% (72V - 108V) | ≤ 600V | ≤ 0.5pF | ≥ 10000MΩ | |
3 | Surface | 4.4mm x 4.4mm x 7.2mm | 0.0mm | Yes | Yes | No | 3SDH4 Series | Tape & Reel (1800pcs) |
 |
|
3Y06-230A | 230V | ±20% (184V - 276V) | ≤ 700V | ≤ 3.0pF | ≥ 10000MΩ |  |
3 | User Defined | 6.0mm x 8.6mm | 0.0mm | Yes | Yes | No | 3Y06 Series | Tray (100pcs) |
 |
|
3Y06-230P1 | 230V | ±20% (184V - 276V) | ≤ 700V | ≤ 3.0pF | ≥ 10000MΩ |  |
3 | Through Hole | 6.0mm x 8.6mm x 13.0mm | 3.8mm | Yes | Yes | No | 3Y06 Series | Tray (100pcs) |
|
|
3Y06-350A | 350V | ±20% (280V - 420V) | ≤ 750V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | User Defined | 6.0mm x 8.6mm | 0.0mm | Yes | Yes | No | 3Y06 Series | Tray (100pcs) |
|
|
3Y06-350P1 | 350V | ±20% (280V - 420V) | ≤ 750V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 6.0mm x 8.6mm x 13.0mm | 3.8mm | Yes | Yes | No | 3Y06 Series | Tray (100pcs) |
|
|
3Y06-90A | 90V | ±20% (72V - 108V) | ≤ 850V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | User Defined | 6.0mm x 8.6mm | 0.0mm | Yes | Yes | No | 3Y06 Series | Tray (100pcs) |
|
|
3Y06-90P1 | 90V | ±20% (72V - 108V) | ≤ 850V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 6.0mm x 8.6mm x 13.0mm | 3.8mm | Yes | Yes | No | 3Y06 Series | Tray (100pcs) |
 |
|
3YD-230A | 230V | ±20% (184V - 276V) | ≤ 600V | ≤ 3.0pF | ≥ 10000MΩ |  |
3 | User Defined | 6.0mm x 8.3mm | 0.0mm | Yes | Yes | No | 3YD Series | Tray (100pcs) |
 |
|
3YD-230P1 | 230V | ±20% (184V - 276V) | ≤ 600V | ≤ 3.0pF | ≥ 10000MΩ |  |
3 | Through Hole | 6.0mm x 8.3mm | 3.8mm | Yes | Yes | No | 3YD Series | Tray (100pcs) |
|
|
3YD-350A | 350V | ±20% (280V - 420V) | ≤ 700V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | User Defined | 6.0mm x 8.3mm | 0.0mm | Yes | Yes | No | 3YD Series | Tray (100pcs) |
|
|
3YD-350P1 | 350V | ±20% (280V - 420V) | ≤ 700V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 6.0mm x 8.3mm | 3.8mm | Yes | Yes | No | 3YD Series | Tray (100pcs) |
|
|
3YD-90A | 90V | ±20% (72V - 108V) | ≤ 600V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | User Defined | 6.0mm x 8.3mm | 0.0mm | Yes | Yes | No | 3YD Series | Tray (100pcs) |
|
|
3YD-90P1 | 90V | ±20% (72V - 108V) | ≤ 600V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 6.0mm x 8.3mm | 3.8mm | Yes | Yes | No | 3YD Series | Tray (100pcs) |
|
|
3YVJ-200J1F2 | 200V | ±25% (150V - 250V) | ≤ 650V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 8.0mm x 12.0mm x 16.3mm | 4.4mm | Yes | Yes | Yes | 3J Series | Tray (100pcs) |
|
|
3YVJ-260B | 260V | ±20% (208V - 312V) | ≤ 650V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 7.5mm x 12.0mm | 0.0mm | Yes | Yes | No | 3J Series | Tray (100pcs) |
|
|
3YVJ-260J1 | 260V | ±20% (208V - 312V) | ≤ 650V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 7.5mm x 12.0mm x 14.5mm | 4.4mm | Yes | Yes | No | 3J Series | Tray (100pcs) |
|
|
3YVJ-260J1F2 | 260V | ±20% (208V - 312V) | ≤ 650V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 8.0mm x 12.0mm x 16.3mm | 4.4mm | Yes | Yes | Yes | 3J Series | Tray (100pcs) |
|
|
3YVJ-550J1 | 550V | ±20% (440V - 660V) | ≤ 1000V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 7.5mm x 12.0mm x 14.5mm | 4.4mm | Yes | Yes | No | 3J Series | Tray (100pcs) |
|
|
3YVJ-550J1F2 | 550V | ±20% (440V - 660V) | ≤ 1000V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | Through Hole | 8.0mm x 12.0mm x 16.3mm | 4.4mm | Yes | Yes | Yes | 3J Series | Tray (100pcs) |
 |
|
3YW-230A | 230V | ±20% (184V - 276V) | ≤ 800V | ≤ 3.0pF | ≥ 10000MΩ |  |
3 | User Defined | 8.0mm x 26.8mm | 0.0mm | Yes | Yes | No | 3YW Series | Tray (80pcs) |
 |
|

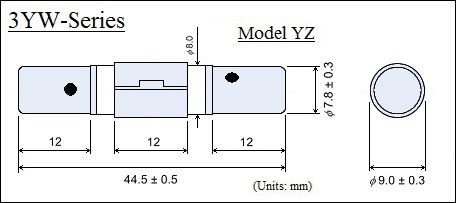

3YW-230YZ | 230V | ±20% (184V - 276V) | ≤ 800V | ≤ 3.0pF | ≥ 10000MΩ |  |
3 | User Defined | 9.0mm x 44.5mm | 0.0mm | Yes | Yes | No | 3YW Series | Tray (80pcs) |
|
|
3YW-350A | 350V | ±20% (280V - 420V) | ≤ 850V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | User Defined | 8.0mm x 26.8mm | 0.0mm | Yes | Yes | No | 3YW Series | Tray (80pcs) |
|
|
3YW-350YZ | 350V | ±20% (280V - 420V) | ≤ 850V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | User Defined | 9.0mm x 44.5mm | 0.0mm | Yes | Yes | No | 3YW Series | Tray (80pcs) |
|
|
3YW-400A | 400V | ±20% (320V - 480V) | ≤ 900V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | User Defined | 8.0mm x 26.8mm | 0.0mm | Yes | Yes | No | 3YW Series | Tray (80pcs) |
|
|
3YW-400YZ | 400V | ±20% (320V - 480V) | ≤ 900V | ≤ 3.0pF | ≥ 10000MΩ | |
3 | User Defined | 9.0mm x 44.5mm | 0.0mm | Yes | Yes | No | 3YW Series | Tray (80pcs) |
 |
|
CA-200 | 200V | ±25% (150V - 250V) | ≤ 700V | ≤ 1.5pF | ≥ 10000MΩ |  |
2 | Coaxial | 6.0mm x 6.0mm x 13.0mm | 0.0mm | Yes | Yes | No | CA Series | Tray (100pcs) |
|
|
CA-200(tin) | 200V | ±25% (150V - 250V) | ≤ 700V | ≤ 1.5pF | ≥ 10000MΩ | |
2 | Coaxial | 6.0mm x 6.0mm x 13.0mm | 0.0mm | Yes | Yes | No | CA Series | Tray (100pcs) |
|
|
CA-400 | 400V | ±25% (300V - 500V) | ≤ 700V | ≤ 1.5pF | ≥ 10000MΩ | |
2 | Coaxial | 6.0mm x 6.0mm x 13.0mm | 0.0mm | Yes | Yes | No | CA Series | Tray (100pcs) |
|
|
CA-400(tin) | 400V | ±25% (300V - 500V) | ≤ 700V | ≤ 1.5pF | ≥ 10000MΩ | |
2 | Coaxial | 6.0mm x 6.0mm x 13.0mm | 0.0mm | Yes | Yes | No | CA Series | Tray (100pcs) |
 |
|
SD3-200 | 200V | ±20% (160V - 240V) | ≤ 700V | ≤ 0.5pF | ≥ 10000MΩ |  |
2 | Surface | 3.2mm x 2.6mm x 4.5mm | 0.0mm | Yes | Yes | No | SD3 Series | Tape & Reel (2500pcs) |
|
|
SD3-75 | 75V | ±20% (60V - 90V) | ≤ 700V | ≤ 0.5pF | ≥ 10000MΩ | |
2 | Surface | 3.2mm x 2.6mm x 4.5mm | 0.0mm | Yes | Yes | No | SD3 Series | Tape & Reel (2500pcs) |
|
|
SD3-90 | 90V | ±20% (72V - 108V) | ≤ 700V | ≤ 0.5pF | ≥ 10000MΩ | |
2 | Surface | 3.2mm x 2.6mm x 4.5mm | 0.0mm | Yes | Yes | No | SD3 Series | Tape & Reel (2500pcs) |
 |
|
SD4-145 | 145V | ±20% (116V - 174V) | ≤ 600V | ≤ 0.5pF | ≥ 10000MΩ |  |
2 | Surface | 4.4mm x 4.4mm x 3.5mm | 0.0mm | Yes | Yes | No | SD4 Series | Tape & Reel (1800pcs) |
|
|
SD4-200 | 200V | ±20% (160V - 240V) | ≤ 600V | ≤ 0.5pF | ≥ 10000MΩ | |
2 | Surface | 4.4mm x 4.4mm x 3.5mm | 0.0mm | Yes | Yes | No | SD4 Series | Tape & Reel (1800pcs) |
|
|
SD4-200SVSS | 200V | ±20% (160V - 240V) | ≤ 800V | ≤ 0.5pF | ≥ 10000MΩ | |
2 | Surface | 4.4mm x 4.4mm x 3.5mm | 0.0mm | Yes | Yes | No | SD4 Series | Tape & Reel (1800pcs) |
|
|
SD4-230 | 230V | ±20% (184V - 276V) | ≤ 650V | ≤ 0.5pF | ≥ 10000MΩ | |
2 | Surface | 4.4mm x 4.4mm x 3.5mm | 0.0mm | Yes | Yes | No | SD4 Series | Tape & Reel (1800pcs) |
|
|
SD4-350 | 350V | ±20% (280V - 420V) | ≤ 700V | ≤ 0.5pF | ≥ 10000MΩ | |
2 | Surface | 4.4mm x 4.4mm x 3.5mm | 0.0mm | No | Yes | No | SD4 Series | Tape & Reel (1800pcs) |
|
|
SD4-75 | 75V | ±20% (60V - 90V) | ≤ 600V | ≤ 0.5pF | ≥ 10000MΩ | |
2 | Surface | 4.4mm x 4.4mm x 3.5mm | 0.0mm | Yes | Yes | No | SD4 Series | Tape & Reel (1800pcs) |
|
|
SD4-90 | 90V | ±20% (72V - 108V) | ≤ 600V | ≤ 0.5pF | ≥ 10000MΩ | |
2 | Surface | 4.4mm x 4.4mm x 3.5mm | 0.0mm | Yes | Yes | No | SD4 Series | Tape & Reel (1800pcs) |
 |
|
SD8-145 | 145V | ±15% (123V - 167V) | ≤ 700V | ≤ 1.0pF | ≥ 10000MΩ |  |
2 | Surface | 8.0mm x 7.5mm x 6.0mm | 0.0mm | Yes | Yes | No | SD8 Series | Tape & Reel (500pcs) |
|
|
SD8-230 | 230V | ±15% (195V - 265V) | ≤ 750V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Surface | 8.0mm x 7.5mm x 6.0mm | 0.0mm | Yes | Yes | No | SD8 Series | Tape & Reel (500pcs) |
|
|
SD8-250 | 250V | ±15% (212V - 288V) | ≤ 800V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Surface | 8.0mm x 7.5mm x 6.0mm | 0.0mm | Yes | Yes | No | SD8 Series | Tape & Reel (500pcs) |
|
|
SD8-300 | 300V | ±15% (255V - 345V) | ≤ 850V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Surface | 8.0mm x 7.5mm x 6.0mm | 0.0mm | Yes | Yes | No | SD8 Series | Tape & Reel (500pcs) |
|
|
SD8-350 | 350V | ±15% (297V - 403V) | ≤ 850V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Surface | 8.0mm x 7.5mm x 6.0mm | 0.0mm | Yes | Yes | No | SD8 Series | Tape & Reel (500pcs) |
|
|
SD8-400 | 400V | ±15% (340V - 460V) | ≤ 850V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Surface | 8.0mm x 7.5mm x 6.0mm | 0.0mm | Yes | Yes | No | SD8 Series | Tape & Reel (500pcs) |
|
|
SD8-470 | 470V | ±15% (399V - 541V) | ≤ 850V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Surface | 8.0mm x 7.5mm x 6.0mm | 0.0mm | Yes | Yes | No | SD8 Series | Tape & Reel (500pcs) |
|
|
SD8-600 | 600V | ±15% (510V - 690V) | ≤ 1000V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Surface | 8.0mm x 7.5mm x 6.0mm | 0.0mm | Yes | Yes | No | SD8 Series | Tape & Reel (500pcs) |
|
|
SD8-75 | 75V | ±20% (60V - 90V) | ≤ 700V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Surface | 8.0mm x 7.5mm x 6.0mm | 0.0mm | Yes | Yes | No | SD8 Series | Tape & Reel (500pcs) |
|
|
SD8-90 | 90V | ±20% (72V - 108V) | ≤ 700V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Surface | 8.0mm x 7.5mm x 6.0mm | 0.0mm | Yes | Yes | No | SD8 Series | Tape & Reel (500pcs) |
|
|
SDH4-145 | 145V | ±20% (116V - 174V) | ≤ 600V | ≤ 0.5pF | ≥ 10000MΩ |  |
2 | Surface | 4.4mm x 4.4mm x 3.5mm | 0.0mm | Yes | Yes | No | SDH4 Series | Tape & Reel (1800pcs) |
|
|
SDH4-200 | 200V | ±20% (160V - 240V) | ≤ 600V | ≤ 0.5pF | ≥ 10000MΩ | |
2 | Surface | 4.4mm x 4.4mm x 3.5mm | 0.0mm | Yes | Yes | No | SDH4 Series | Tape & Reel (1800pcs) |
|
|
SDH4-200SVSS | 200V | ±20% (160V - 240V) | ≤ 800V | ≤ 0.5pF | ≥ 10000MΩ | |
2 | Surface | 4.4mm x 4.4mm x 3.5mm | 0.0mm | Yes | Yes | No | SDH4 Series | Tape & Reel (1800pcs) |
|
|
SDH4-230 | 230V | ±20% (184V - 276V) | ≤ 650V | ≤ 0.5pF | ≥ 10000MΩ | |
2 | Surface | 4.4mm x 4.4mm x 3.5mm | 0.0mm | Yes | Yes | No | SDH4 Series | Tape & Reel (1800pcs) |
|
|
SDH4-350 | 350V | ±20% (280V - 420V) | ≤ 700V | ≤ 0.5pF | ≥ 10000MΩ | |
2 | Surface | 4.4mm x 4.4mm x 3.5mm | 0.0mm | No | Yes | No | SDH4 Series | Tape & Reel (1800pcs) |
|
|
SDH4-75 | 75V | ±20% (60V - 90V) | ≤ 600V | ≤ 0.5pF | ≥ 10000MΩ | |
2 | Surface | 4.4mm x 4.4mm x 3.5mm | 0.0mm | Yes | Yes | No | SDH4 Series | Tape & Reel (1800pcs) |
|
|
SDH4-90 | 90V | ±20% (72V - 108V) | ≤ 600V | ≤ 0.5pF | ≥ 10000MΩ | |
2 | Surface | 4.4mm x 4.4mm x 3.5mm | 0.0mm | Yes | Yes | No | SDH4 Series | Tape & Reel (1800pcs) |
 |
|
U-10A | 600V | ±15% (510V - 690V) | ≤ 1000V | ≤ 1.0pF | ≥ 10000MΩ |  |
2 | User Defined | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
 |
|

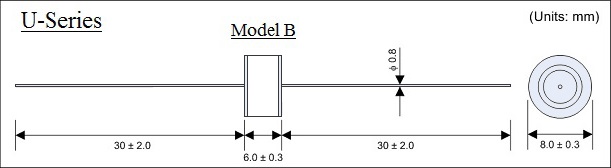

U-10B | 600V | ±15% (510V - 690V) | ≤ 1000V | ≤ 1.0pF | ≥ 10000MΩ |  |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-10BTR | 600V | ±15% (510V - 690V) | ≤ 1000V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tape & Reel (500pcs) |
|
|
U-11A | 800V | ±15% (680V - 920V) | ≤ 1200V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | User Defined | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-11B | 800V | ±15% (680V - 920V) | ≤ 1200V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-11BTR | 800V | ±15% (680V - 920V) | ≤ 1200V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tape & Reel (500pcs) |
|
|
U-1A | 75V | ±20% (60V - 90V) | ≤ 700V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | User Defined | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-1B | 75V | ±20% (60V - 90V) | ≤ 700V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-1BTR | 75V | ±20% (60V - 90V) | ≤ 700V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tape & Reel (500pcs) |
|
|
U-2A | 90V | ±20% (72V - 108V) | ≤ 700V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | User Defined | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-2B | 90V | ±20% (72V - 108V) | ≤ 700V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-2BTR | 90V | ±20% (72V - 108V) | ≤ 700V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tape & Reel (500pcs) |
|
|
U-3A | 145V | ±15% (123V - 167V) | ≤ 700V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | User Defined | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-3B | 145V | ±15% (123V - 167V) | ≤ 700V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-3BTR | 145V | ±15% (123V - 167V) | ≤ 700V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tape & Reel (500pcs) |
|
|
U-4A | 230V | ±15% (195V - 265V) | ≤ 750V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | User Defined | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-4B | 230V | ±15% (195V - 265V) | ≤ 750V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-4BTR | 230V | ±15% (195V - 265V) | ≤ 750V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tape & Reel (500pcs) |
|
|
U-5A | 250V | ±15% (212V - 288V) | ≤ 800V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | User Defined | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-5B | 250V | ±15% (212V - 288V) | ≤ 800V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-5BTR | 250V | ±15% (212V - 288V) | ≤ 800V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tape & Reel (500pcs) |
|
|
U-6A | 300V | ±15% (255V - 345V) | ≤ 850V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | User Defined | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-6B | 300V | ±15% (255V - 345V) | ≤ 850V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-6BTR | 300V | ±15% (255V - 345V) | ≤ 850V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tape & Reel (500pcs) |
|
|
U-7A | 350V | ±15% (297V - 403V) | ≤ 850V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | User Defined | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-7B | 350V | ±15% (297V - 403V) | ≤ 850V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-7BTR | 350V | ±15% (297V - 403V) | ≤ 850V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tape & Reel (500pcs) |
|
|
U-8A | 400V | ±15% (340V - 460V) | ≤ 850V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | User Defined | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-8B | 400V | ±15% (340V - 460V) | ≤ 850V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-8BTR | 400V | ±15% (340V - 460V) | ≤ 850V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tape & Reel (500pcs) |
|
|
U-9A | 470V | ±15% (399V - 541V) | ≤ 850V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | User Defined | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-9B | 470V | ±15% (399V - 541V) | ≤ 850V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tray (100pcs) |
|
|
U-9BTR | 470V | ±15% (399V - 541V) | ≤ 850V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | Yes | Yes | No | U Series | Tape & Reel (500pcs) |
 |
|
Y-152B | 1500V | ±15% (1275V - 1725V) | ≤ 2200V | ≤ 1.0pF | ≥ 10000MΩ |  |
2 | Through Hole | 8.0mm x 8.5mm | 0.0mm | Yes | Yes | No | Y Series | Tray (100pcs) |
|
|
Y-212B | 2100V | ±20% (1680V - 2520V) | ≤ 2700V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 8.5mm | 0.0mm | Yes | Yes | No | Y Series | Tray (100pcs) |
|
|
Y-302B | 3000V | ±20% (2400V - 3600V) | ≤ 4000V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 8.5mm | 0.0mm | Yes | Yes | No | Y Series | Tray (100pcs) |
|
|
Y-402B | 4000V | ±20% (3200V - 4800V) | ≤ 5000V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 8.5mm | 0.0mm | Yes | Yes | No | Y Series | Tray (100pcs) |
 |
|
Y-602B | 6000V | ±20% (4800V - 7200V) | ≤ 8000V | ≤ 1.0pF | ≥ 10000MΩ |  |
2 | Through Hole | 8.0mm x 13.0mm | 0.0mm | Yes | Yes | No | Y Series | Bulk (50pcs) |
 |
|
Y05-230A | 230V | ±20% (184V - 276V) | ≤ 650V | ≤ 1.0pF | ≥ 10000MΩ |  |
2 | User Defined | 4.7mm x 5.0mm | 0.0mm | No | Yes | No | Y05 Series | Tray (100pcs) |
 |
|
Y05-230B | 230V | ±20% (184V - 276V) | ≤ 650V | ≤ 1.0pF | ≥ 10000MΩ |  |
2 | Through Hole | 4.7mm x 5.0mm | 0.0mm | No | Yes | No | Y05 Series | Bulk (200pcs) |
|
|
Y05-350A | 350V | ±20% (280V - 420V) | ≤ 750V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | User Defined | 4.7mm x 5.0mm | 0.0mm | No | Yes | No | Y05 Series | Tray (100pcs) |
|
|
Y05-350B | 350V | ±20% (280V - 420V) | ≤ 750V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 4.7mm x 5.0mm | 0.0mm | No | Yes | No | Y05 Series | Bulk (200pcs) |
|
|
Y05-600A | 600V | ±20% (480V - 720V) | ≤ 1000V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | User Defined | 4.7mm x 5.0mm | 0.0mm | No | Yes | No | Y05 Series | Tray (100pcs) |
|
|
Y05-600B | 600V | ±20% (480V - 720V) | ≤ 1000V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 4.7mm x 5.0mm | 0.0mm | No | Yes | No | Y05 Series | Bulk (200pcs) |
|
|
Y05-90A | 90V | ±20% (72V - 108V) | ≤ 500V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | User Defined | 4.7mm x 5.0mm | 0.0mm | No | Yes | No | Y05 Series | Tray (100pcs) |
|
|
Y05-90B | 90V | ±20% (72V - 108V) | ≤ 500V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 4.7mm x 5.0mm | 0.0mm | No | Yes | No | Y05 Series | Bulk (200pcs) |
 |
|
Y06S-100A | 100V | ±20% (80V - 120V) | ≤ 700V | ≤ 1.0pF | ≥ 10000MΩ |  |
2 | User Defined | 6.0mm x 4.3mm | 0.0mm | No | Yes | No | Y06S Series | Tray (100pcs) |
 |
|
Y06S-100B1 | 100V | ±20% (80V - 120V) | ≤ 700V | ≤ 1.0pF | ≥ 10000MΩ |  |
2 | Through Hole | 6.0mm x 4.3mm | 0.0mm | No | Yes | No | Y06S Series | Tray (100pcs) |
|
|
Y06SZ-230A | 230V | ±20% (184V - 276V) | ≤ 700V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | User Defined | 6.0mm x 4.3mm | 0.0mm | No | Yes | No | Y06S Series | Tray (100pcs) |
|
|
Y06SZ-230B1 | 230V | ±20% (184V - 276V) | ≤ 700V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 6.0mm x 4.3mm | 0.0mm | No | Yes | No | Y06S Series | Tray (100pcs) |
|
|
Y06SZ-350A | 350V | ±20% (184V - 276V) | ≤ 800V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | User Defined | 6.0mm x 4.3mm | 0.0mm | No | Yes | No | Y06S Series | Tray (100pcs) |
|
|
Y06SZ-350B1 | 350V | ±20% (280V - 420V) | ≤ 800V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 6.0mm x 4.3mm | 0.0mm | No | Yes | No | Y06S Series | Tray (100pcs) |
|
|
Y08-802B | 8000V | ±20% (6400V - 9600V) | ≤ 10000V | ≤ 1.0pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 13.0mm | 0.0mm | Yes | Yes | No | Y Series | Bulk (50pcs) |
 |
|
Y08JS-230A | 230V | ±22% (180V - 280V) | ≤ 600V | ≤ 1.5pF | ≥ 10000MΩ |  |
2 | User Defined | 8.0mm x 6.0mm | 0.0mm | No | Yes | No | Y08JS Series | Tray (100pcs) |
 |
|
Y08JS-230AF1 | 230V | ±22% (180V - 280V) | ≤ 700V | ≤ 3.5pF | ≥ 10000MΩ |  |
2 | User Defined | 8.0mm x 6.0mm | 0.0mm | No | No | Yes | Y08JS Series | Tray (100pcs) |
 |
|
Y08JS-230B | 230V | ±22% (180V - 280V) | ≤ 600V | ≤ 1.5pF | ≥ 10000MΩ |  |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | No | Yes | No | Y08JS Series | Tray (100pcs) |
|
|
Y08JS-350A | 350V | ±20% (280V - 420V) | ≤ 800V | ≤ 1.5pF | ≥ 10000MΩ | |
2 | User Defined | 8.0mm x 6.0mm | 0.0mm | No | Yes | No | Y08JS Series | Tray (100pcs) |
|
|
Y08JS-350B | 350V | ±20% (280V - 420V) | ≤ 800V | ≤ 1.5pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | No | Yes | No | Y08JS Series | Tray (100pcs) |
|
|
Y08JS-90A | 90V | ±20% (72V - 108V) | ≤ 500V | ≤ 1.5pF | ≥ 10000MΩ | |
2 | User Defined | 8.0mm x 6.0mm | 0.0mm | No | Yes | No | Y08JS Series | Tray (100pcs) |
|
|
Y08JS-90B | 90V | ±20% (72V - 108V) | ≤ 500V | ≤ 1.5pF | ≥ 10000MΩ | |
2 | Through Hole | 8.0mm x 6.0mm | 0.0mm | No | Yes | No | Y08JS Series | Tray (100pcs) |
 |
|
Y08SV-272B | 2700V | ±10% (2430V - 3000V) | ≤ 3900V | ≤ 1.0pF | ≥ 100MΩ |  |
2 | Through Hole | 8.0mm x 8.8mm | 0.0mm | Yes | Yes | No | Y08SV Series | Bulk (200pcs) |
|
|
Y08SV-272BTR | 2700V | ±10% (2430V - 3000V) | ≤ 3900V | ≤ 1.0pF | ≥ 100MΩ | |
2 | Through Hole | 8.0mm x 8.8mm | 0.0mm | Yes | Yes | No | Y08SV Series | Tape & Reel (1000pcs) |
|
|
Y08SV-312B | 3100V | +13% -8% (2850V - 3500V) | ≤ 3700V | ≤ 1.0pF | ≥ 100MΩ | |
2 | Through Hole | 8.0mm x 8.8mm | 0.0mm | Yes | Yes | No | Y08SV Series | Bulk (200pcs) |
|
|
Y08SV-312BTR | 3100V | +13% -8% (2850V - 3500V) | ≤ 3700V | ≤ 1.0pF | ≥ 100MΩ | |
2 | Through Hole | 8.0mm x 8.8mm | 0.0mm | Yes | Yes | No | Y08SV Series | Tape & Reel (1000pcs) |
|
|
Y08Z-1000B | 1000V | ±20% (800V - 1200V) | ≤ 1500V | ≤ 1.0pF | ≥ 10000MΩ |  |
2 | Through Hole | 8.0mm x 8.0mm | 0.0mm | Yes | Yes | No | Y Series | Tray (100pcs) |
