3H-Series
Sankosha Gas Discharge Tubes (GDT) - Surge Arresters
Applications:

  • Cable Telephony Products
  • Modems/Cable Modems
  • Broadband/CATV/Coaxial Protectors
  • xDSL Modems and Peripherals
  • Building Entry/Outside Plant
  • Transient Voltage Surge Suppression
    		• Features:

  • UL 479B Recognized (File E140906)
  • High Surge Current Rating
  • Non-Radioactive
  • Surface Mount
  • Small Size
  • RoHS Compliant (100% Lead-Free)
  • ISO 9001 and ISO 14001 Certified
  • Low Capacitance ≤ 3.0pF(1)

    • Part
    Number
    (Model J1)    		 Part
    Number(2)
    (Model J1F5)    		 DC Breakdown Voltage
    (L1-E)(L2-E)    		 Impulse Breakdown Voltage
    (L1-E)(L2-E)    		 Insulation
    Resistance(3)    		 DC Holdover Voltage(4) Impulse Life (L1+L2-E)
    (10/1000μs 200A)    		 Impulse Discharge Current (L1+L2-E)
    (8/20μs)    		 AC Discharge Current (L1+L2-E)
    (50Hz)
    100V/s 1kV/μs 10 Times(5) 1 Second
    3H-90J1 3H-90J1F5 72-108V ≤ 500V ≥ 10,000 MΩ ≤ 52V 300 Times 10 kA 10A, 10 Times
    3H-150J1 3H-150J1F5 120-180V ≤ 600V ≥ 10,000 MΩ ≤ 52V 300 Times 10 kA 10A, 10 Times
    3H-230J1 3H-230J1F5 184-280V ≤ 700V ≥ 10,000 MΩ ≤ 135V 300 Times 10 kA 10A, 10 Times
    3H-250J1 3H-250J1F5 200-300V ≤ 700V ≥ 10,000 MΩ ≤ 135V 300 Times 10 kA 10A, 10 Times
    3H-350J1 3H-350J1F5 280-420V ≤ 1000V ≥ 10,000 MΩ ≤ 135V 300 Times 20 kA 10A, 10 Times
    3H-420J1 3H-420J1F5 300-500V ≤ 1000V ≥ 10,000 MΩ ≤ 135V 300 Times 10 kA 10A, 10 Times
    3H-500J1 3H-500J1F5 400-600V ≤ 1200V ≥ 10,000 MΩ ≤ 135V 300 Times 10 kA 10A, 10 Times


    Notes:
    1. Capacitance measured at 1 MHz for all 3H-Series parts is ≤ 3.0 pF

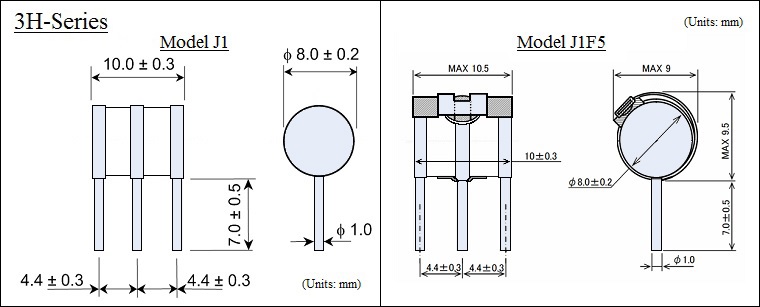

    2. Failsafe device available as model J1F5. A model with the failsafe on bottom, not shown, is also available. Please contact us for more details.
    3. Insulation Resistance for all 3H-Series parts is ≥ 10,000 MΩ measured at:
            DC 50V for the 3H-90 and 3H-150
            DC 100V for the 3H-230, 3H-250, 3H-350, 3H-420 and 3H-500
    4. DC Holdover Voltage measured in accordance with the ITU-T K.12 or the IEEE C62.31-1987 Test Circuit
    5. 5 times each polarity
